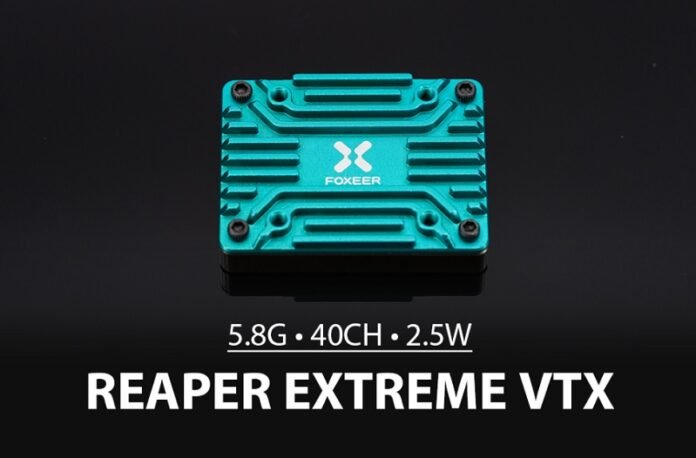

Foxeer recently announced a new analog 5.8G VTX with a maximum broadcast power of 2.5W. Yes, you read that correctly, 2500mW. For sure, the Foxeer Reaper Extreme is intended for ultra-long range FPV flights. The FPV transmitter measures 36×27.5x8mm and weighs 13 grams. It comes with a metal body for good heat disipation.
The Foxeer Reaper Extreme can be powered from 7 to 36V and it has a regulated 5V out for FPV cameras. In addition to the four control buttons (Key, CH, Band, Power), it features IRC Tramp for remote configuration.
Technical specifications
| Input voltage | 7-36V |
| Power consumption | 1.2A/9V (10.8W) |
| Output voltage (Camera) | 5V |
| Type | Analog |
| Frequency | 5.8GHz |
| Channels | 40CH |
| Power | Pit/25mW/200mW/500mW/1.5W/2.5W |
| Dimensions | 36×27.5x8mm |
| Mounting pattern | 20x20mm |
| Weight | 13 grams |
